Description:
To open a circuit automatically in the case of an earth leakage fault between phase and earth and/or neutral greater or equal to 10mA, 30mA, 100mA, 300mA or 500mA; it is used in domestic, commercial and industrial installations
Earth fault indicator
Mechanical indicator appearing on the front face of the RCCB is to be differed between tripping and off position yellow-trippedNuisance tripping:
All the RCCB`S are protected against transient voltages ( lightning ,line disturbance ) and transient current (from high capacitive circuit) DC sensitive RCCB`s or time delay device are available , please consult us you also have the possibility to install the following accessories: electrical cover kit locking kit.,2P 40A 0.1A.jpg "TGRC Residual Current Circuit Breaker (RCCB),2P 40A 0.1A")
,4P 63A 0.03a.jpg "TGRC Residual Current Circuit Breaker (RCCB),4P 63A 0.03a")

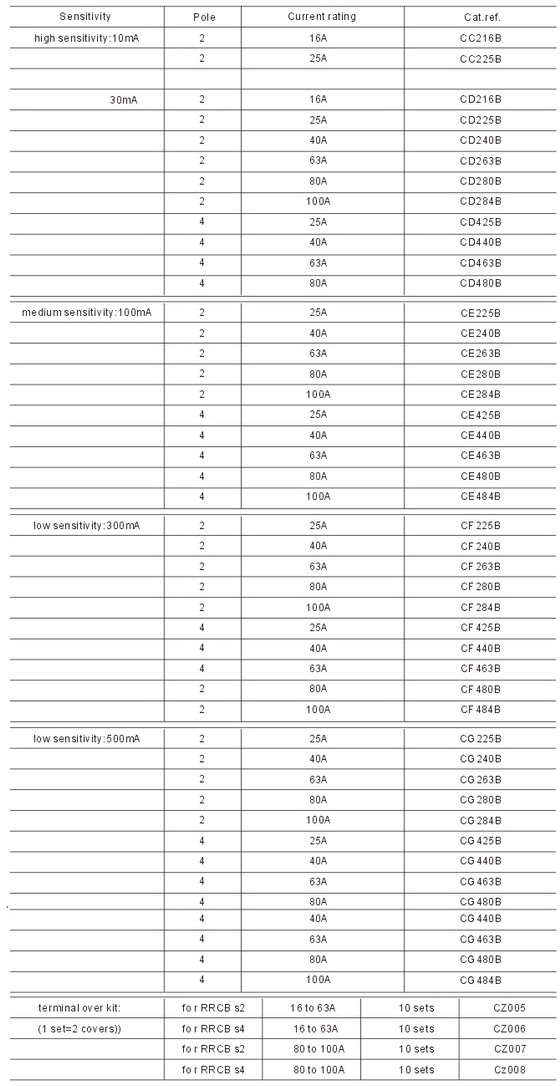

-specifications.jpg "TGRC Residual Current Circuit Breaker (RCCB)-specifications")
