Detective Machine Connectors

YT Detective Machine Connector

YT Detective Machine Connector Name: YT Detective Machine Connector

Type: Detective Machine Connector

Content: YT series connector is specialized in connection of electrical power and control circuit for electrical equipment and especially used in flaw detector and environmental protection equipment

Operation Temperature: Lower limit -45℃; Upper limit +85℃
Relative Humidity: Up to 93% at 40℃
Vibration: Acceleration up to 100m/s2 at 60~80 times/min
Insulation Resistance: Normal ≥5000MΩ
                                    Damp Heat ≥100MΩ
Withstand Voltage: 2000V(Normal)
Mating Cycles: ≥500

Contact Arrangement

Contacts Qty.

9

10

15

Contact Arrangement

 1

 2

 3

Contact Diameter×Qty.

Φ2.5×6
Φ3.2×3

Φ2.5×7
Φ3.2×3

Φ1.5×13
Φ2×2

Mounting Dimention

 Mounting Figure

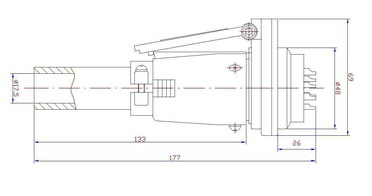

Coupling Dimention

 4  5
YT Detective Machine Connector
Ningbo electric Co.,Ltd is the Chinese supplier/manufacturer of YT Detective Machine Connector
