Fuse Alarms, NEP, Ningbo Manufacturer

Fuse Alarms

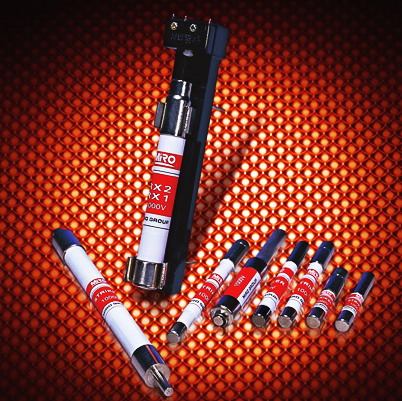

This series of fuse alams are used in electric lines of 50Hz AC and rated voltage up to 1000V as melting signal/siren for the fuse links.

It is made up of the following parts:1.Melt striker;2.Micro switch(with one normal close contact and one normal open contact);3.A base for the striker and the switch.
Fuse alarms are usually paralleled under the lid fastening screws at the ends of the fuse.When the fuse breaks,the striking pin springs out of the striker,the microswitch pushed and signal sent out or circuit cut down.The distance between the two fastening ends can be adjusted in a certain range for paralleling to fuses with different heights.

Models,rated voltage and dimensions are shown in Figure 13.1~13.2and Table 13.

Table 13

Cat.
No.
Models Components* Rated insulation voltage (V) Dimensions(mm) Weight (g)
Fig. L1 L2 D d A
1301** RX1-1000 Striker 1000 13.1 82 89 11 7.5 7.5 17
RX2-1000
1302 RZS1-1000 Striker 1000 13.1 58 64 11 5 12 15.5
1303 RX1A-1000 Striker 100 13.1 55 60 8.5 3.5 7.5 12.5

../uploadFiles/cp41.jpg../uploadFiles/tj41.jpg


Table 13(cont.)

Cat.
No.
Models Components* Rated insulation voltage (V) Dimensions(mm) Weight (g)
Fig. L1 L2 D d A
1304** RX1-1000 Striker base 1000 13.2 54.5 114 27 22.5 41~88 42
RX2-1000
1305 RZS1-1000 Striker base 1000 13.2 36.5 90 28 26 30~72 33
1306 RX1A-1000 Striker base
Prepared and decided by the customer
27

../uploadFiles/cp42.jpg../uploadFiles/tj42.jpg

Note:*The model for the striker and striker base is the same,but the name is different.
    **RX1-1000 and RX2-1000 same in dimensions and technical data.
Fuse Alarms
