Square Pipe Fuse Links With Knife Contacts

Square Pipe Fuse Links
Protection against overload and short-circuit in electric lines(type gG),also available for protection of semiconductor parts and equipments against short-circuit(type aR) and protection of motors(type aM).
Rated voltage up to 1140V;Rated current up to 1250A;Working frequency 50Hz AC;Rated breaking capacity up to 120KA.Compliant with GB13539 and IEC269.

Variable cross-section fuse element made from puie copper or silver sealed in cartridge made from high-duty ceramic.Fuse tube filled with chemically treated high-purity puartz sand as arc-extinguishing medium.Dot-welding of fuse element ends to the terminals ensures riliable electric coonnection and forms insert knife type contacts.Striker may be attached to the fuse link to provide immediate activation of microswitch to give various signals or cut the circuit automatically. Indicator or striker may be attached to the fuse link to show cutout of fuse or to give various signals and to cut the circuit automatically.

The models,dimensions,ratings are shown in Figures4.1~4.13and tables44

Table 4

Cat. No
Models
Rated voltage (V)
Rated current (A)
Dimensions/size(mm)
weight (g)
MIRO
Cross-reference
Sizes
Fig.
gG(Normal
aR(fast)
gG(Normal
aR(fast)
0401
NH00C
-
-
-
500/600
10~100
000
4.1
138
../uploadFiles/cp18_1.jpg../uploadFiles/tj18_1.jpg


Table 4

Cat. No
Models
Rated voltage (V)
Rated current (A)
Dimensions/size(mm)
weight (g)
MIRO
Cross-reference
Sizes
Fig.
A
B
C
D
H
gG(Normal
aR(fast)
gG(Normal
aR(fast)
0402 NH00 RS31 - - 500/660 100~160 00 4.2 78 50.5 15 30 60 201
0403 NH00 - - - 500/660 60~160 0 4.2 125 67 15 30 60 267
../uploadFiles/cp18_2.jpg../uploadFiles/tj18_2.jpg


Table 4

Cat. No
Models
Rated voltage (V)
Rated current (A)
Dimensions/size(mm)
weight (g)
MIRO
Cross-reference
Sizes
Fig.
A
B
C
D
H
gG(Normal
aR(fast)
gG(Normal
aR(fast)
0404 NH1 RS32 - - 500/660 32~50 1 4.3 135 67 20 46 58.5 447
0405 NH2 RS33 - - 500/660 80~400 2 4.3 150 68 30 58.5 68.5 727
0406 NH3 RS34 - - 500/660 160~630 3 4.3 150 65 36 70 82 975
../uploadFiles/cp18_3.jpg../uploadFiles/tj18_3.jpg
Table 4

Cat. No
Models
Rated voltage (V)
Rated current (A)
Dimensions/size(mm)
weight (g)
MIRO
Cross-reference
Sizes
Fig.
gG(Normal
aR(fast)
gG(Normal
aR(fast)
0407
NH1(小容量)
-
-
-
500/600
16~160
1
4.4
312

../uploadFiles/cp19_1.jpg../uploadFiles/tj19_1.jpg


Table 4

Cat. No
Models
Rated voltage (V)
Rated current (A)
Dimensions/size(mm)
weight (g)
MIRO
Cross-reference
Sizes
Fig.
A
B
C
D
H
gG(Normal
aR(fast)
gG(Normal
aR(fast)
0408 NH1(小容量) - - - 500/660 35~250 2 4.5 150 67 20 46 67 458
0409 NH1(小容量) - - - 500/660 200~400 3 4.5 151 67 30 58.5 81.5 727
../uploadFiles/cp19_2.jpg../uploadFiles/tj19_2.jpg


Table 4

Cat. No
Models
Rated voltage (V)
Rated current (A)
Dimensions/size(mm)
weight (g)
MIRO
Cross-reference
Sizes
Fig.
A
B
C
D
H
gG(Normal
aR(fast)
gG(Normal
aR(fast)
0410 RO30A RS30A NT00C - 500/660 4~100 000 4.6 78 49 15 21 48 123
0411 RO30B RS30B NT00C - 500/660 4~100 000 4.6 78 49 15 21 48 117
0412 RO30C RS30C 3NA3 3NE18.. 500/660 10~100 000 4.6 78 49 15 21 52.5 132
0413 RO31A RS31A PH00 - 500/660 10~160 00 4.6 78 49 15 30 53 178.5
0414 RO31B RS31B NT0 3NE41.. 500/1140 6~160 0 4.6 125 68 15 29 61.5 278
0415 RO31C RS31C NT1 - 500 32~200 1 4.6 135 68 15 29 61.5 293.5

../uploadFiles/cp20_1.jpg../uploadFiles/tj20_2.jpg


Table 4

Cat. No
Models
Rated voltage (V)
Rated current (A)
Dimensions/size(mm)
weight (g)
MIRO
Cross-reference
Sizes
Fig.
A
B
C
D
H
gG(Normal
aR(fast)
gG(Normal
aR(fast)
0416 NT00 RS31 RT16-00 3NE80.. 500/660 64~160 00 4.7 78 49 15 29 56 175
0417 NT0 - RT16-0 - 500/660 64~160 0 4.7 125 68 15 29 56 252
../uploadFiles/cp20_2.jpg../uploadFiles/tj20_2.jpg
Table 4

Cat. No
Models
Rated voltage (V)
Rated current (A)
Dimensions/size(mm)
weight (g)
MIRO
Cross-reference
Sizes
Fig.
A
B
C
D
H
gG(Normal
aR(fast)
gG(Normal
aR(fast)

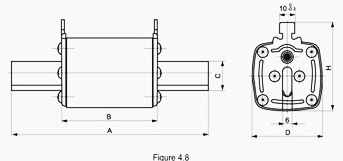

0418 RO32 RS32 NT1 RT16-1
3NA1 RT20-1
3NE12.. 500/660 32~250 1 4.8 135 68 20 48 60 455
0419 RO32A RS32A - - 1140 200   4.8 172 110 19.5 44 58 570
0420 RO32B RS32B NT1 RT16-1 - 500 250 1 4.8 135 68 20 40 68 393
0421 RO33 RS33 NT2 RT16-2
3NA1 RT20-2
3NE13.. 500/600 80~400 2 4.8 150 68 25 58 70 650
0422 RO33B RS33B RT16-2 - 500 40 2 4.8 150 68 25 52 71 580
0423 RO34 RS34 NT3 RT16-3
3NA3 RT20-3
3NE14.. 500/600 160~630 3 4.8 150 68 32 67 80 880
0424 RO35 RS35 - - 500 6~160   4.8 135 68 20 30 53 249
0425 RO36 RS36 EAPO - 500 32~200 1 4.8 135 68 20 40 59 356
0426 RO39A RS39a NT4a - 380/500 500~1250 4a 4.8 200 90 50 97 113 2140


../uploadFiles/cp21_2.jpg../uploadFiles/cp21_1.jpg../uploadFiles/tj21_1.jpg


Table 4

Cat. No
Models
Rated voltage (V)
Rated current (A)
Dimensions/size(mm)
weight (g)
MIRO
Cross-reference
Sizes
Fig.
A
B
C
D
G E F
H
gG(Normal
aR(fast)
gG(Normal
aR(fast)

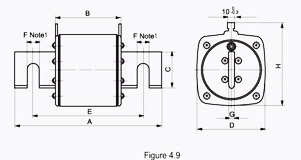

0427 RO34K RS34K - 3NC8 500/660 150~630   4.9 140 68 32 70 6 108 10.5 85 810
0428 RO38 RS38 - 3NC3626 - 200~630   4.9 160 86 32 70 6 126 11 81.5 1050
0429 RO39 RS39 NT4RT17 - 500 500~1250 4 4.9 200 90 50 97 8 150 16.5 113 2470
0427 RO39B RS39B NT4BRT17 - 500 500~1000 4 4.9 200 79 50 87.5 8 150 17 114.5 2100
../uploadFiles/cp21_3.jpg../uploadFiles/tj21_2.jpg
Note:the joint holes of two-horizontal type is allowed to be changed to one horizontal one straight type or two straight type
Table 4

Cat. No
Models
Rated voltage (V)
Rated current (A)
Dimensions/size(mm)
weight (g)
MIRO
Cross-reference
Sizes
Fig.
gG(Normal
aR(fast)
gG(Normal
aR(fast)
0431
RO34A
RS34A
8SY5023
-
1140
450
-
4.10
1066


../uploadFiles/cp22_1.jpg../uploadFiles/tj22_1.jpg


Table 4

Cat. No
Models
Rated voltage (V)
Rated current (A)
Dimensions/size(mm)
weight (g)
MIRO
Cross-reference
Sizes
Fig.
A
B
C
D
E F G
H
gG(Normal
aR(fast)
gG(Normal
aR(fast)

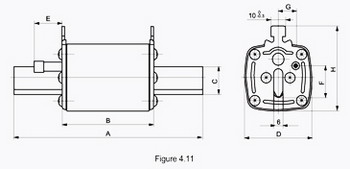

0432 RO31Z RS31Z RT16A-00 - 500/660 35~125 0 4.11 78 49 15 29 15 22.5 - 59.5 183
0433 RO32Z RS32Z RT16A-1 - 500/660 200~250 1 4.11 135 68 20 48 25 14.5 16 60 390
0434 RO33Z RS33Z RT16A-2 - 500/660 315~400 2 4.11 150 68 25 58 30 14.5 19 70 683
0435 RO34Z RS34Z RT16A-3 - 500/660 500~630 3 4.11 150 68 32 67 30 14.5 19 82 880
0436 NTA-1 - - - 500/660 200~250 1 4.11 135 68 20 58 8 26.5 - 60 380
0437 NTA-2 - - - 500/660 315~400 2 4.11 150 68 25 58 8 32 - 70 673
0438 NTA-3 - - - 500/660 500~630 3 4.11 150 68 32 67 8 40 - 82 870
0439 RO36Z RS36Z - - 500/660 125~160   4.11 135 68 20 40 25 20 11.5 61 369
../uploadFiles/cp22_2.jpg../uploadFiles/tj22_2.jpg
Table 4

Cat. No
Models
Rated voltage (V)
Rated current (A)
Dimensions/size(mm)
weight (g)
MIRO
Cross-reference
Sizes
Fig.
A
B
C
D
E F G
H
gG(Normal
aR(fast)
gG(Normal
aR(fast)
0440 RO32BZ RS32BZ - HLS1 500 125~250 1 4.12 135 68 20 50.5 9 24.5 26 28 380
0441 RO33BZ RS33BZ - HLS2 500 250~400 2 4.12 150 68 25 66.5 9 29 35 71 675


../uploadFiles/cp23_1.jpg../uploadFiles/tj23_1.jpg


Table 4

Cat. No
Models
Rated voltage (V)
Rated current (A)
Dimensions/size(mm)
weight (g)
MIRO
Cross-reference
Sizes
Fig.
A
B
C
D
H
gG(Normal
aR(fast)
gG(Normal
aR(fast)
0442 RTO-50 - - - 380 10~50 - 4.13 103 66 10.3 25 52 189.5
0443 RTO-100 - - - 380 20~100 - 4.13 125 67 18 40 52 313
0444 RTO-200 - - - 380 50~200 - 4.13 135 67 23 46 58 404.5
0445 RTO-400 - - - 380 160~400 - 4.13 145 67 30 55 66 601
0446 RTO-600 - - - 380 250~600 - 4.13 165 67 36 66 77 855
0447 RTO-1000 - - - 380 500~1000 - 4.13 280 90 50 85 100 2050
../uploadFiles/cp23_2.jpg../uploadFiles/tj23_2.jpg
Square Pipe Fuse Links
Fuse Link: Square Pipe Fuse Links With Knife Contacts
