CP-30ACT, CT-30BCT Current Transformer



Model	Rated Current(A) Primary/Secondary	Busbar Hole Dimension	Accuracy	Rated Burden(VA)	Rated Voltage
CP-30ACT	30/5A-500/5A	30×10mm	1.0	1-5VA	600V
CP-30BCT	30/5A-500/5A	30×10mm	1.0	1-5VA	600V

---

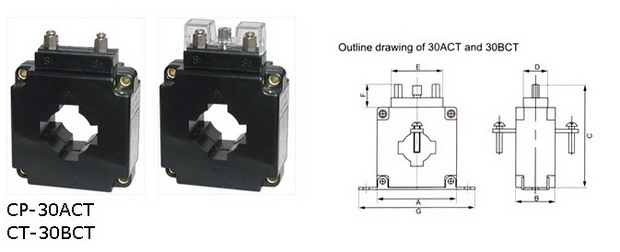

Dimensions in mm:

Model	A	B	C	D	E	F
CP-30ACT	65	32	85		37	19
CP-30BCT	65	32	87		37	19
