H07RN-F Power Cables, VDE h07rn-f cable, HO7RNF heavy duty rubber cable

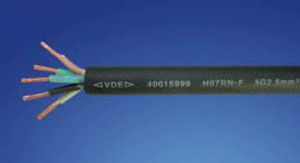

H07RN-F cable

H07RNF Heavy Duty Cables

VDE H07RN-F power cable is for indoor and outdoor, fixed or mobile use. The cables are made of 3 (H07RN-F3...) or 5 (H07RN-F5...) soft rubber insulated conductors, with a diameter of 3 mm (...G1.5) or 3.5 mm (... G2.5).
Packed in a highly flexible rubber outer jacket of respectivly 9 mm , 11mm and 14 mm. These cables are resistant to flame, acids, and oil penetration.

Application: These cables are designed to provide high flexibility and have the capacity to withstand weather, oils/greases, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial environments.

H07RN-F Power Cable

Many H07RN-F Cables available :
HO7RN-F3G1, HO7RN-F3G1.5, HO7RN-F3G2.5
HO7RN-F4G1, HO7RN-F4G1.5, HO7RN-F4G2.5
HO7RN-F5G1, HO7RN-F5G1.5, HO7RN-F5G2.5, HO7RN-F5G6, HO7RN-F5G10, HO7RN-F5G16, HO7RN-F5G25

All the specifictions of H07RN-F Cable:

Core and Size MM

Stranding MM

Nominal O/Dia MM

Weight KG / KM

1 x 16.0

126 / 0.40

12.0

260

1 x 25.0

196 / 0.40

14.0

369

1 x 35.0

276 / 0.40

15.9

500

1.x 50.0

396 / 0.40

18.3

689

1 x 70.0

360 / 0.50

20.7

918

1 x 95.0

475 / 0.50

23.4

1202

1 x 120.0

608 / 0.50

25.8

1489

1 x 150.0

756 / 0.50

28.3

1824

1 x 185.0

925 / 0.50

31.0

2202

1 x 240.0

1221 / 0.50

34.5

2847

1 x 300.0

1525 / 0.50

37.7

3495

Core and Size MM

Stranding MM

Nominal O/Dia MM

Weight KG / KM

2 x 1.5

30 / 0.50

9.4

116

2 x 2.5

50 / 0.25

11.0

164

2 x 4.0

56 / 0.30

12.8

232

2 x 6.0

84 / 0.30

14.2

297

2 x 10.0

80 / 0.40

20.4

573

2 x 16.0

126 / 0.40

23.0

774

2 x 25.0

196 / 0.40

27.4

1110

2 x 35.0

276 / 0.40

30.8

1474

Core and Size MM

Stranding MM

Nominal O/Dia MM

Weight KG / KM

3 x 1.5

30 / 0.50

10.3

141

3 x 2.5

50 / 0.25

11.8

200

3. x 4.0

56 / 0.30

13.7

285

3 x 6.0

84 / 0.30

15.2

371

3 x 10.0

80 / 0.40

21.9

712

3 x 16.0

126 / 0.40

24.7

971

3 x 25.0

196 / 0.40

29.4

1394

3 x 35.0

276 / 0.40

32.8

1850

Core and Size MM

Stranding MM

Nominal O/Dia MM

Weight KG / KM

4 x 1.5

30 / 0.50

11.2

174

4 x 2.5

50 / 0.25

12.6

249

4 x 4.0

56 / 0.30

15.1

361

4 x 6.0

84 / 0.30

16.9

480

4 x 10.0

80 / 0.40

24.0

890

4 x 16.0

126 / 0.40

27.0

1225

4 x 25.0

196 / 0.40

32.6

1792

4 x 35.0

276 / 0.40

36.5

2380

4 x 50.0

396 / 0.40

42.0

3635

4 x 70.0

360 / 0.50

49.0

4830

4 x 95.0

475 / 0.50

55.0

6320

Core and Size MM

Stranding MM

Nominal O/Dia MM

Weight KG / KM

5 x 1.5

30 / 0.50

12.3

218

5 x 2.5

50 / 0.25

14.5

309

5 x 4.0

56 / 0.30

16.9

450

5 x 6.0

84 / 0.30

18.8

595

5 x 10.0

80 / 0.40

26.5

1100

5 x 16.0

126 / 0.40

30.0

1528

5 x 25.0

196 / 0.40

36.0

2200

5 x 35.0

276 / 0.40

40.0

2925



Technical Information:
Voltage Working : 450 / 750V Test : 3000V
Temperature range : -25oC to +85oC
Bending radius : Flexing : 15 x cable diameter
  Static : 6 x cable diameter
Conductor identification :
Single core Black
Two core Brown and Blue
Three core Brown, blue and green / yellow
Four core Brown, blue, black and green / yellow
Five core Brown, blue, 2 black and green / yellow
