XAC PUSHBUTTON Crane Control

XAC Pushbutton are used for lifting equipments and handling applications and equipment. It also could be used for motor switching, electric chain hlist,crane.

Ours XAC Pendant control stations series incluing:

XAC-A2 Pushbutton
XAC-A4 Push button
XAC-A6 Pushbutton switch
XAC-A8 Pushbutton switch

Crane Controling Speed of XAC

Single movement Speed
Double movement Speed

XAC Pushbutton Switch Working Environment

1.Environment temperature:-25°C ~+55 °C
2.Air relative humidity : ≤85%
3.Normal work when the vibration frequency is 2-80HZ, the acceleration is 0.79
4.Pollution grade is 3,installation sort is III, protection grade is above IP655.Altitude : ≤2000m
5.DC 380V, AC 220V 6.Interchangable with Telemecanique ,TE,Schneider

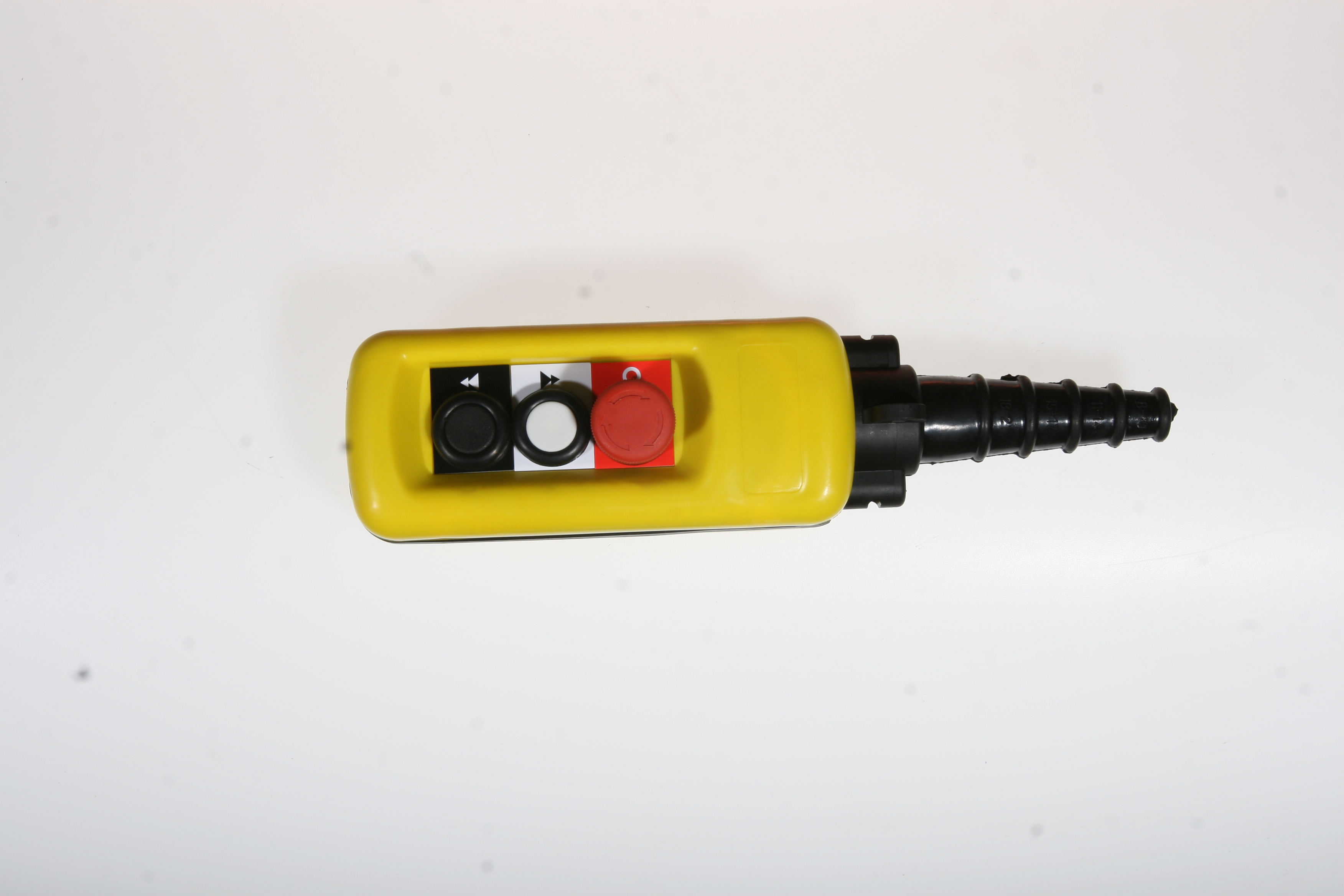

XAC-A2 Pushbutton

XAC A2 Crane control pushbutton Spare parts:

One Empty Cases with 3 holes for UP + Down movements buttons and 1 emergency stop mushroom-head button

ZB2BE102 N/C Contact Blocks: 1 pc

XENG1191 (PENDANT STATION CONTACT 240V AC 3A XE):2 pcs

XACA009 Mechanical Interlocks: 1 set

ZA2BS54 Mushroom Head 40mm/ ZA2BS44/ Mushroom Head 30mm

OPERATOR 22MM RED 40MM MUSHROOM TRIGGER ACTION

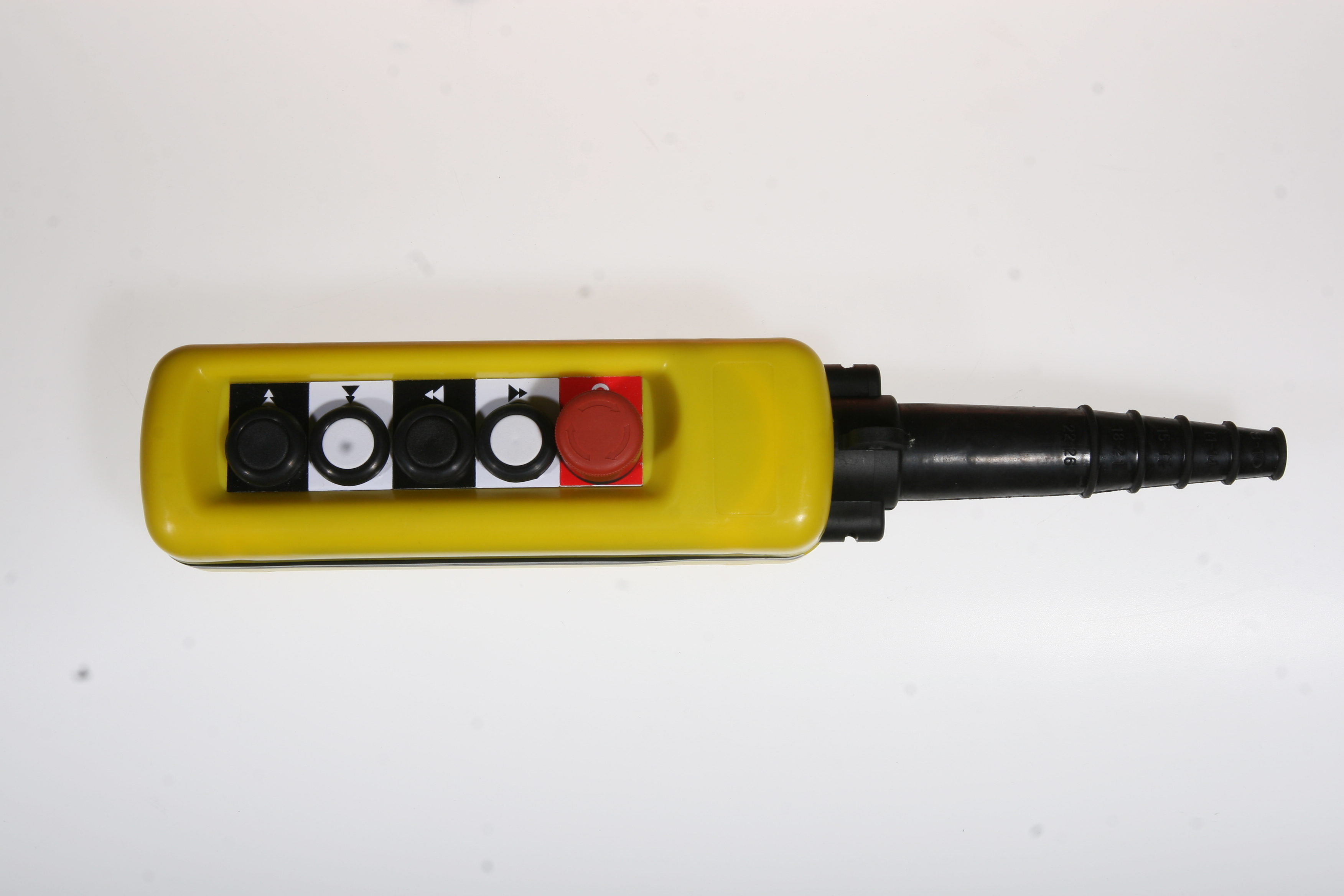

XAC-A4 Pushbuttons

XAC A4 Cran pushbutton switch components:

One Empty Cases with 5 holes for Up + Down + Left + Right movements buttons and 1 emergency stop mushroom-head button

ZB2BE102 N/C Contact Blocks: 1 pc

XENG1191 (PENDANT STATION CONTACT 240V AC 3A XE):4 pcs

XACA009 Mechanical Interlocks: 2 sets

ZA2BS54 Mushroom Head 40mm/ ZA2BS44/ Mushroom Head 30mm

OPERATOR 22MM RED 40MM MUSHROOM TRIGGER ACTION

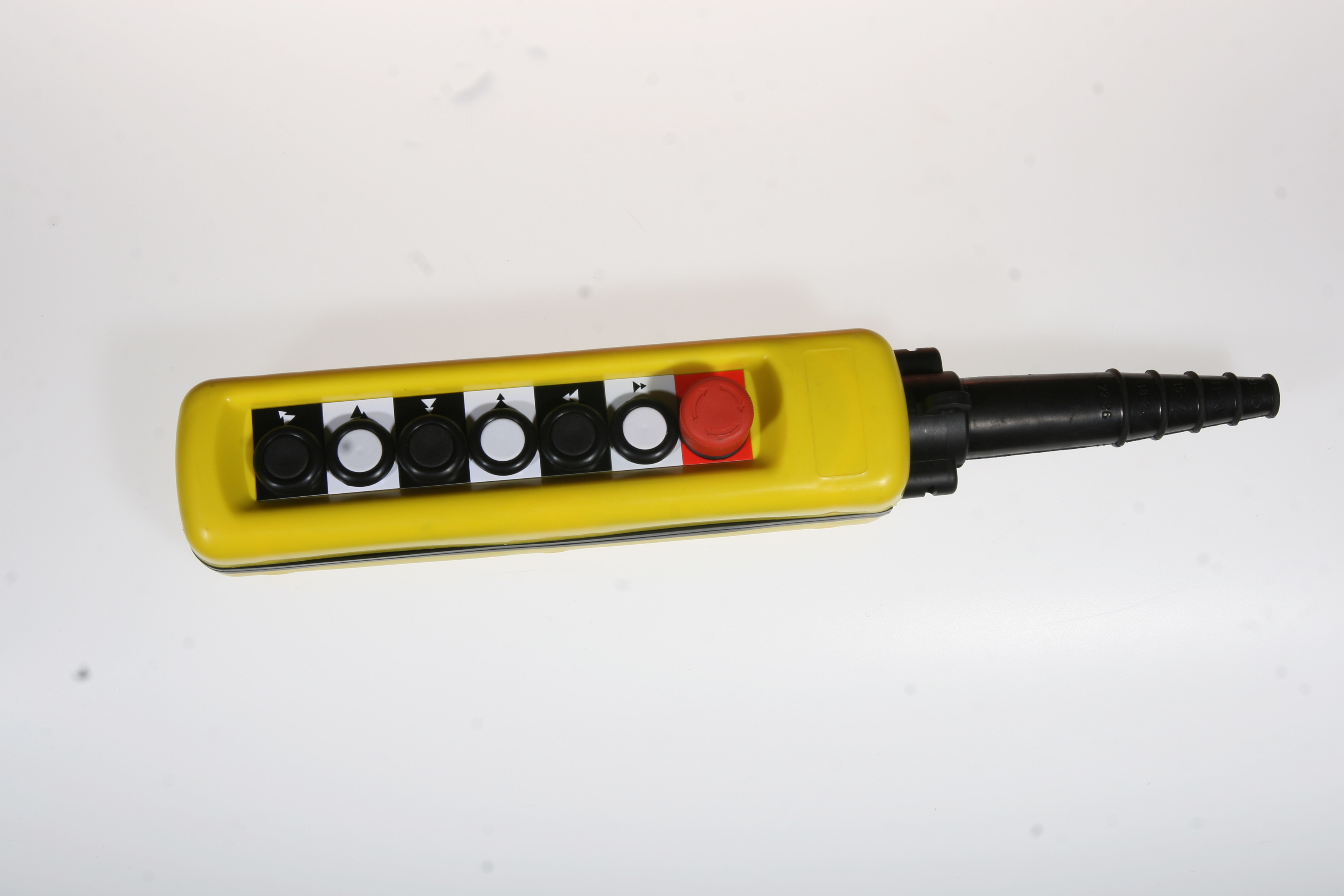

XAC-A6 Pushbutton switch

XAC A6 Push button switches components:

One Empty Cases with 7 holes for Up + Down + Left + Right + Forward + Reverse movements buttons and 1 emergency stop mushroom-head button

ZB2BE102 N/C Contact Blocks: 1 pc

XENG1191 (PENDANT STATION CONTACT 240V AC 3A XE):6 pcs

XACA009 Mechanical Interlocks: 3 sets

ZA2BS54 Mushroom Head 40mm/ ZA2BS44/ Mushroom Head 30mm

OPERATOR 22MM RED 40MM MUSHROOM TRIGGER ACTION

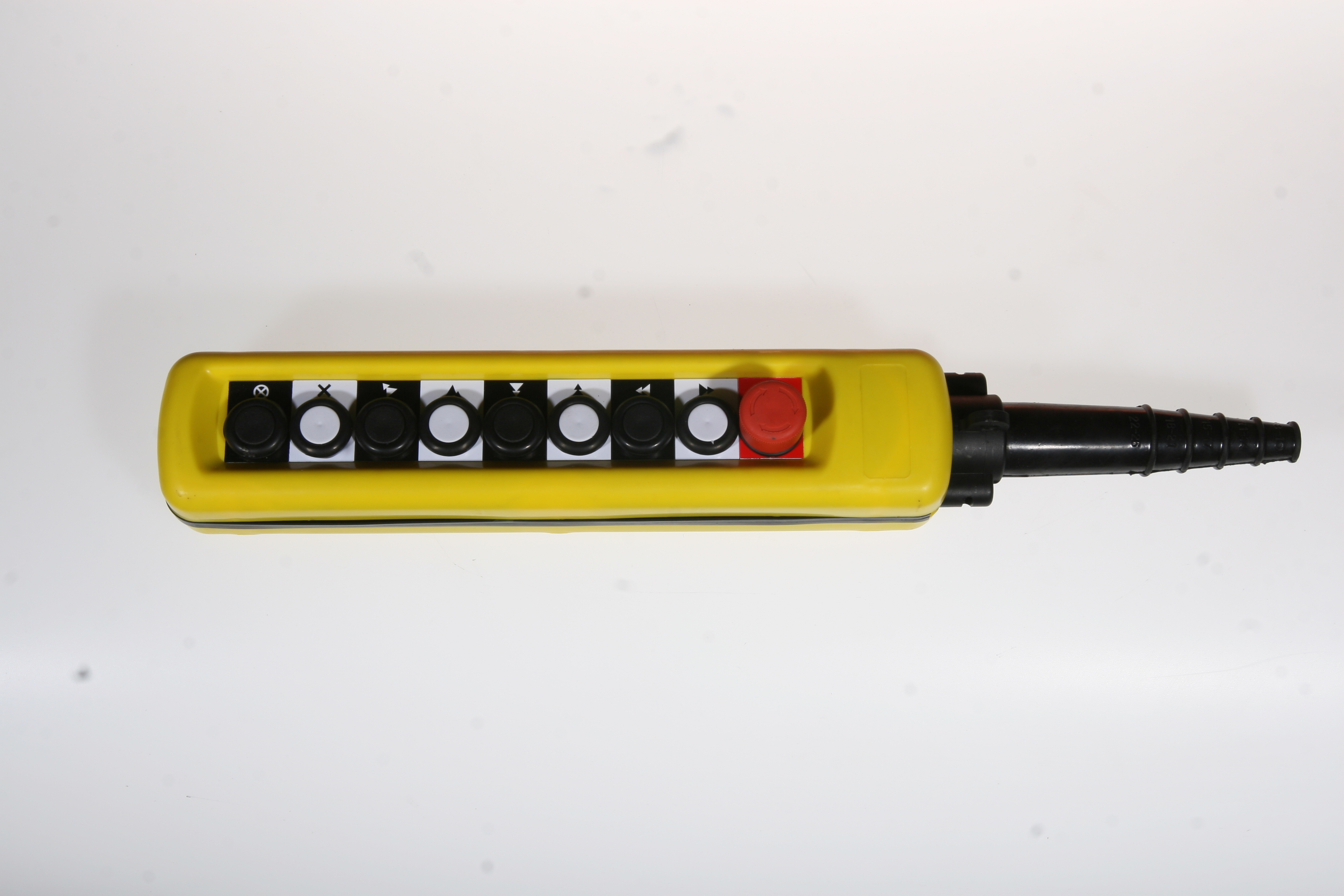

XAC-A8 Pushbutton switch

XAC A8 Push button spare part:

One Empty Cases with 9 holes for Up + Down + Left + Right + Forward + Reverse +Stop + Start movements buttons and 1 emergency stop mushroom-head button

ZB2BE102 N/C Contact Blocks: 1 pc

XENG1191 (PENDANT STATION CONTACT 240V AC 3A XE):6 pcs

XACA009 Mechanical Interlocks: 3 sets

ZA2BS54 Mushroom Head 40mm/ ZA2BS44/ Mushroom Head 30mm

OPERATOR 22MM RED 40MM MUSHROOM TRIGGER ACTION

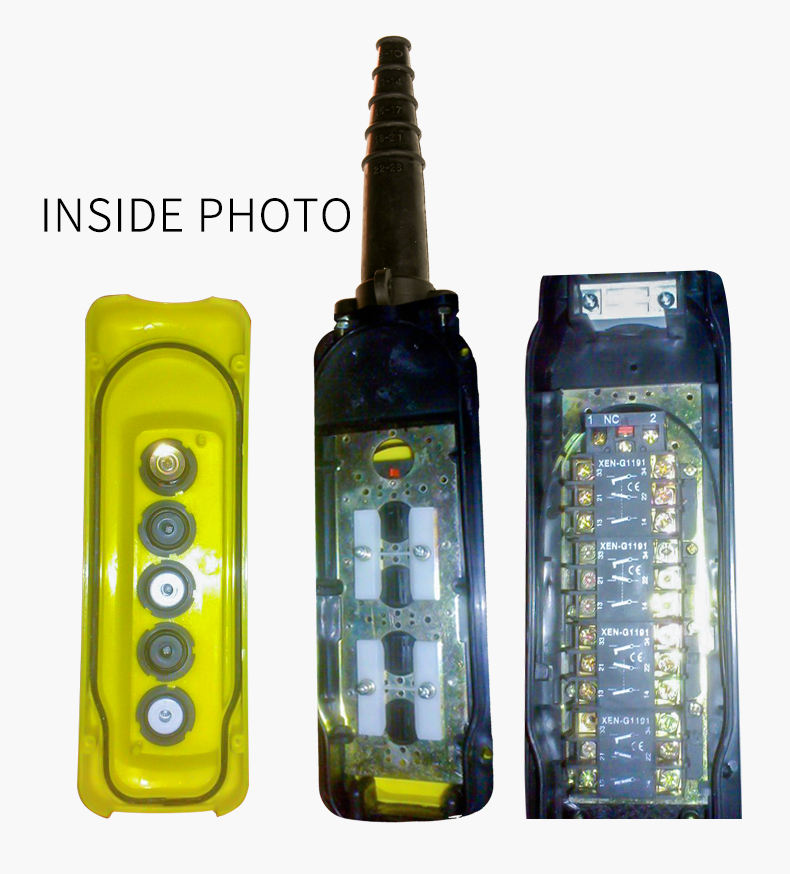

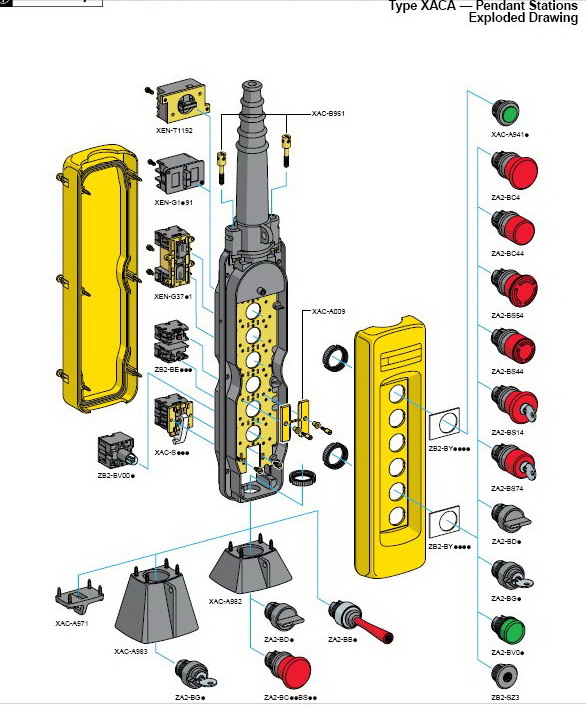

Assembly of an XAC PUSHBUTTON

Spare parts/Accessory/Components of XAC PUSHBUTTON

Empty Cases
Contacts Blocks: ZB2BE101 N/O; ZB2BE102 N/C;
XENG1191 (PENDANT STATION CONTACT 240VAC 3A XE)
XACA009 Mechanical Interlocks
ZA2BS54 Mushroom Head 40mm
ZA2BS44 Mushroom Head 30mm
ZB2BY49** Legend Plates
XACA94** Push Buttons (PENDANT STATION BOOTED OPERATOR XAC)

As a reliable manufacturer and exporter of XAC Pushbutton in Ningbo ,China, we have been greatly welcomed by the buyers and importors from the rane and lifting equipments industry. We sincerely hope we can development more products related to crane control push button switches, electric hoist chains and winches, etc.

You can reach me by this email: alexyfy@gmailcom+
Tel: +86-13505740443
