PDU Socket Modular

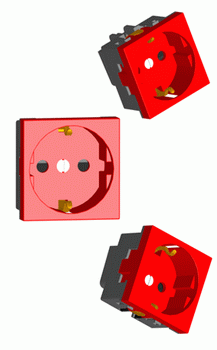

GERMANY SOCKET/ EG1

Specification:

1,Insulation Resistance:Over 100MO at 500V DC
2,Dielectric Strength:2000VAC 1 Minute
3,Body:PC/ABS 94-V0
4,Rating: 16A 250VAC
5,Shape Size : L*W*H 45*45*35.5
6, Socket Standard: DIN49440
7,Color: option
How to install the Germany PDU socket Modular

1.To loosen the bolt of the socket on the centre.
2.Takeing away the panel ,to install the pedestal as your need.
3.To connect the input and output lines from bottom of the pedestal,and pack it with nut.
4.To cover the panel , tighten the bolt.
5.To cover the PIN as your need.

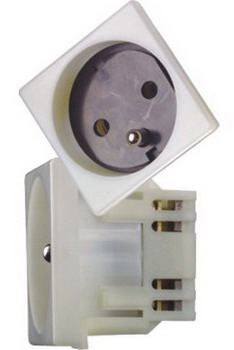

FRANCE SOCKET/ EF1

Specification of France PDU socket Modular

1,Insulation Resistance:Over 100MO at 500V DC
2,Dielectric Strength:2000VAC 1 Minute
3,Body Glass-Fiber Nylon66 94-V0
4,Rating: 16A 250VAC
5,Shape Size L*W*H 45*45*35.5
6, Socket Standard:NF C61-303
7,Color: option

How to install French PDU socket Modular

1.To loosen the bolt of the socket on the centre.
2.Takeing away the panel ,to install the pedestal as your need.
3.To connect the input and output lines from bottom of the pedestal,and pack it with nut.
4.To cover the panel , tighten the bolt.

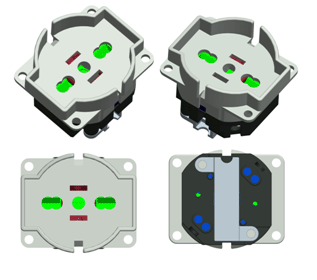

ITALY(Universal) SOCKET/ EY1

Specification:
1,Insulation Resistance:Over 100MO at 500V DC
2,Dielectric Strength:2000VAC 1 Minute
3, PC/ABS 94-V0 Black or Ivory
4,Rating: 16A 250VAC
5,Shape Size L*W*H 42*49*40.5
6, Socket Standard: CEI23-50(IEC60884-1)
7,Color :option
How to install Italy Universal PDU socket Modular
1.To loosen the bolt of the socket on the centre.
2.Takeing away the panel ,to install the pedestal as your need.
3.To connect the input and output lines from bottom of the pedestal,and pack it with nut.
4.To cover the panel , tighten the bolt.

Ningbo Electric Pneumatic are the manufacturer of socket modulars ,Desk Socket , Desk PDU sockts , raised floor socket,ground socket, and other electrical equipment items and crane parts.
