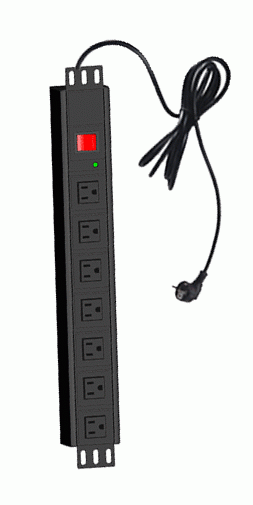

USA Power PDU Sockets

USA PDU Sockets, 19” cabinet, 8 way PDU distribution units.

Model PU*L-07IS
Socket/Outlet Standard IEC60906
Outlet QTY 8 way
Power Input Style Left end single input style
Brackets Installation Style Frontal installation style
Cable plug IEC60906
Control functions LED indicator; Master switch
Protection functions No
Shell colour & Material Black; Aluminium modular design
Cable specification 3*1.5mm2*3M; Standard 3 metre power cord
Electrical Rating 15A 125VAC
Maximum load current 15A
Maximum load capacity 4KW
Size L*W*H 482.6*44.4*62mm
Relative humidity 10-90%

USA power distribution units are the standard choice in sever and networking 19” racks connecting directly to the targeted equipment.
All PDU products are modularized,customer can choose the relative modules and power input cables.
All functional modules are adopted PC/ABS alloy ,hot change temperature reach to above 120 degree,fire- retardant characteristic accords with UL94-V0 standard.

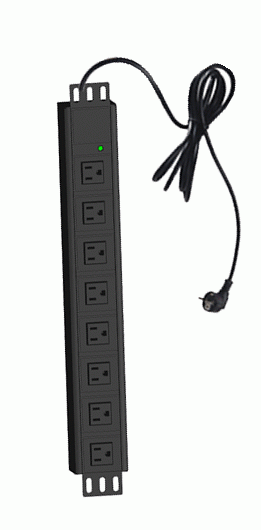

USA Power PDU, 19” Rack Mount, 8 ways power distribution units sockets

Model PU1L-08I
Socket/Outlet Standard IEC60906
Outlet QTY 8 way
Power Input Style Left end single input style
Brackets Installation Style Frontal installation style
Cable plug IEC60906
Control functions Neon indicator;
Protection functions No
Shell colour & Material Black; Aluminium modular design
Cable specification 3*1.5mm2*3M; Standard 3 metre power cord
Electrical Rating 10A 250VAC
Maximum load current 10A
Maximum load capacity 2.5KW
Size L*W*H 482.6*44.4*62mm
Relative humidity 10-90%

USA power distribution units are the standard choice in sever and networking 19” racks connecting directly to the targeted equipment.
All PDU products are modularized,customer can choose the relative modules and power input cables.
All functional modules are adopted PC/ABS alloy ,hot change temperature reach to above 120 degree,fire- retardant characteristic accords with UL94-V0 standard.

Ningbo Electric Pneumatic are the manufacturer of USA standard power distribution sockets.
