China Style Power PDU Sockets

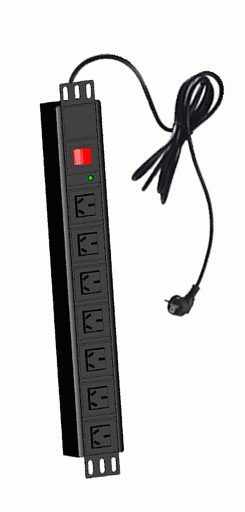

China 10A Power PDU, 19” cabinet Distribution Unit, 7 way PDU

Model PC2L-07IS
Socket/Outlet Standard GB1002/10A
Outlet QTY 7 way
Power Input Style Left end single input style
Brackets Installation Style Frontal installation style
Cable plug GB1002/10A
Control functions Neon indicator; Master switch
Protection functions No
Shell colour & Material Black; Aluminium modular design
Cable specification 3*1.5mm2*3M; Standard 3 metre power cord
Electrical Rating 10A 250VAC
Maximum load current 16A
Maximum load capacity 4KW
Size L*W*H 482.6*44.4*62mm
Relative humidity 10-90%

China 10A power distribution units are the standard choice in sever and networking 19” racks connecting directly to the targeted equipment.
All PDU products of are modularized,customer can choose the relative modules and power input cables.
All functional modules are adopted PC/ABS alloy ,hot change temperature reach to above 120 degree,fire- retardant characteristic accords with UL94-V0 standard.

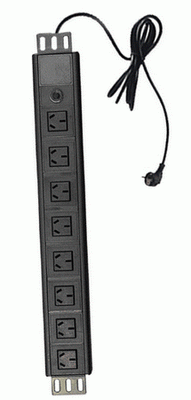

1China 16A Power PDU,9” cabinet, 8 way Distribution Units

Model PC3L-08C
Socket/Outlet Standard GB1002/16A
Outlet QTY 8 way
Power Input Style Left end single input style
Brackets Installation Style Frontal installation style
Cable plug GB1002/16A
Control functions over-current protection
Protection functions No
Shell colour & Material White; Aluminium modular design
Cable specification 3*1.5mm2*3M; Standard 3 metre power cord
Electrical Rating 16A 250VAC
Maximum load current 16A Maximum load capacity 4KW
Size L*W*H 482.6*44.4*62mm
Relative humidity 10-90%

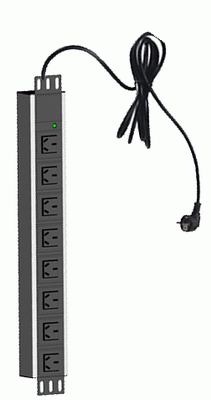

China 10A Power PDU,19” cabinet,8 way Distribution Units

Model PC1L-08I
Socket/Outlet Standard GB1002/10A
Outlet QTY 8 way
Power Input Style Left end single input style
Brackets Installation Style Frontal installation style
Cable plug GB1002/10A
Control functions Single power indicator(Neon indicator)
Protection functions No
Shell colour & Material White; Aluminium modular design
Cable specification 3*1.5mm2*3M; Standard 3 metre power cord
Electrical Rating 10A 250VAC
Maximum load current 16A
Maximum load capacity 4KW
Size L*W*H 482.6*44.4*62mm
Relative humidity 10-90%

China 10A power distribution units are the standard choice in sever and networking 19” racks connecting directly to the targeted equipment.
Ningbo Manufacturer,supplier and exporter of PDU sockets.

Ningbo Electric Pneumatic are the manufacturer of PDU sockts, French standard power distribution sockets, and other electrical equipment items and crane parts.
