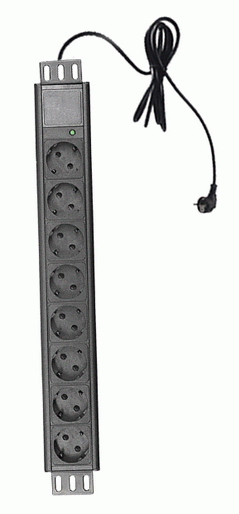

Germany DIN49440 Power PDU,19” cabinet, 8 way power distribute unit sockets
Model PG1L-08ISocket/Outlet Standard DIN49440
Outlet QTY 8 way
Power Input Style Left end single input style
Brackets Installation Style Frontal installation style
Cable plug DIN49441
Control functions Single power indicator(Neon indicator)
Protection functions No
Shell colour & Material White; Aluminium modular design
Cable specification 3*1.5mm2*3M; Standard 3 metre power cord
Electrical Rating 16A 250VAC
Maximum load current 16A
Maximum load capacity 4KW
Size L*W*H 482.6*44.4*62mm
Relative humidity 10-90%
Germany DIN power distribution units are the standard choice in sever and networking 19” racks connecting directly to the targeted equipment, they are available as 16A to Germany power or C19 plug.

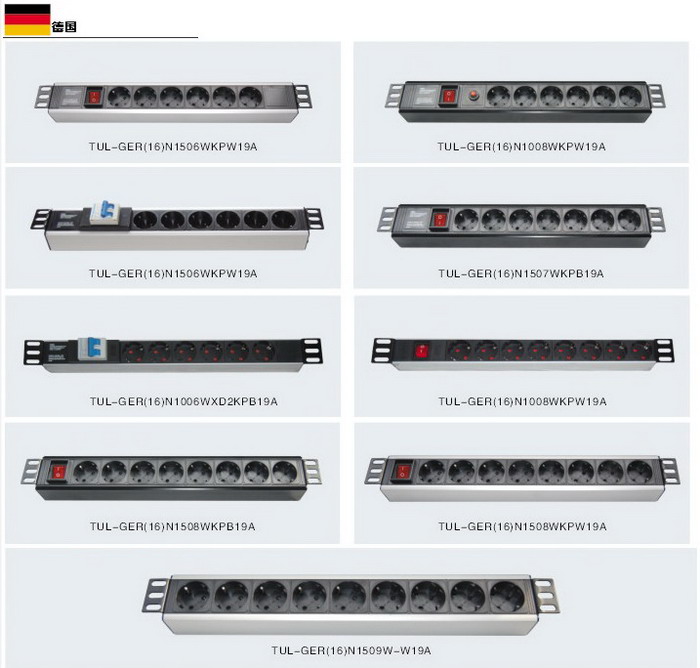

All PDU products are modularized,customer can choose the relative modules and power input cables.
All functional modules are adopted PC/ABS alloy ,hot change temperature reach to above 120 degree,fire-retardant characteristic accords with UL94-V0 standard.
We are the china manufacturer of Germany 19 rack mount PDU sockets in Ningbo City, Zhejiang Province.
