universal Power PDU Sockets

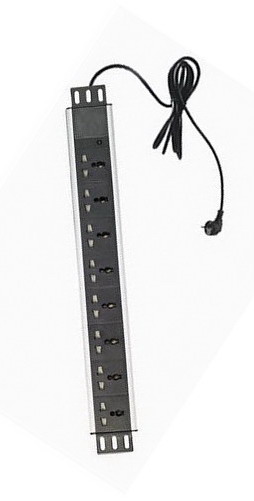

Universal PDU Sockets,PW1L-08I

Universal Power PDU,19” cabinet, 8 ways power distribution units sockest

Model PW1L-08I
Socket/Outlet Standard GB2099.3
Outlet QTY 8 way
Power Input Style Left end single input style
Brackets Installation Style Frontal installation style
Cable plug GB1002/16A
Control functions LED;
Protection functions No
Shell colour & Material Black; Aluminium modular design
Cable specification 3*1.5mm2*3M; Standard 3 metre power cord
Electrical Rating 10A 250VAC
Maximum load current 16A
Maximum load capacity 4KW
Size L*W*H 482.6*44.4*62mm
Relative humidity 10-90%

Universal 10A power distribution units are the standard choice in sever and networking 19” racks connecting directly to the targeted equipment. All PDU products of are modularized,customer can choose the relative modules and power input cables.
