Home>PDU Socket>

UK Power PDU Sockets

UK standard england PDU socket

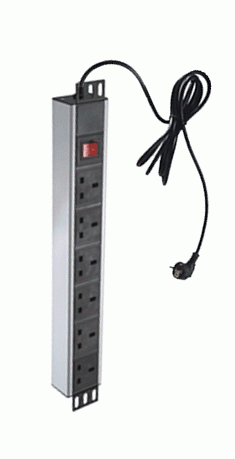

UK Power PDU Sockets, 19'' cabinet,6 way horizontal Distribution Unit

Model: PB2L-06S
Socket/Outlet Standard : BS1363
Outlet QTY: 6 way
Power Input Style : Left end single input style
Brackets Installation Style: Frontal installation style
Cable plug : BS1363
Control functions : Switch
Protection functions: No
Shell colour & Material: Black; Aluminium modular design:
Cable specification: 3*1.5mm2*3M; Standard 3 metre power cord:
Electrical Rating: 13A 250VAC
Maximum load current: 13A
Maximum load capacity : 4KW
Size of this UK PDU socket: L*W*H: 482.6*44.4*62mm
Relative humidity for PDU: 10-90%

UK power distribution units are the standard choice in sever and networking 19” racks connecting directly to the targeted equipment, they are available as 13A to UK power or C19 plug. All PDU products are modularized,customer can choose the relative modules and power input cables.
All functional modules are adopted PC/ABS alloy ,hot change temperature reach to above 120 degree ,fire-retardant characteristic accords with UL94-V0 standard.

UK standard england PDU socket

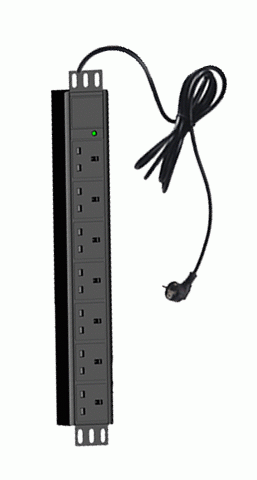

UK 19” cabinet Power PDU, 7 way horizontal Power Distribution Unit.

Model:PB1L-07I
Socket/Outlet Standard BS1363
Outlet QTY 7 way
Power Input Style Left end single input style
Brackets Installation Style Frontal installation style
Cable plug for UK PDU sockets BS1363
Control functions Single power indicator(Neon indicator)
Protection functions No
Shell colour & Material Black; Aluminium modular design
Cable specification 3*1.5mm2*3M; Standard 3 metre power cord
PDU Electrical Rating 13A 250VAC
Maximum load current 13A
Maximum load capacity 4KW
Size of PUD socket L*W*H 482.6*44.4*62mm
Relative humidity 10-90%

UK power distribution units are the standard choice in sever and networking 19” racks connecting directly to the targeted equipment, they are available as 13A to UK power or C19 plug. All PDU products are modularized,customer can choose the relative modules and power input cables.
All functional modules are adopted PC/ABS alloy ,hot change temperature reach to above 120 degree ,fire- retardant characteristic accords with UL94-V0 standard.
